Tascam DR-05X
Tascam DR-05X

Tascam DR-05X

Regular price
Sold out
Sale price
£85.00

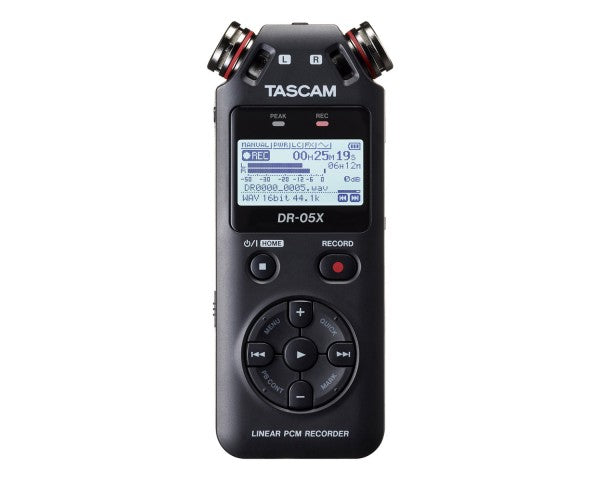

DR-05X Stereo Handheld Audio Recorder and USB Audio Interface

The DR-05X (DR05X) offers portable, high-quality stereo recording in MP3 or WAV format – including 96-kHz/24-bit high-resolution audio – using microSD, microSDHC or microSDXC media. A pair of omni-directional mics handles up to 125 dB SPL with the sensitivity to capture every detail. Users can also use their own microphone or line-level source through the mini-jack stereo input which includes plug-in power for microphones that need it. Ideal for use with K2 Microphone.



FREE DELIVERY WITHIN UK



SPRCIFICATIONS

Control input/output

  • USB port:  Micro-B connector
  •  Format:  USB 2.0 High Speed mass storage class

Audio performance

  • Frequency response:
    • 20 Hz – 20 kHz +0/−1 dB
      • (MIC/EXT IN to LINE OUT, Fs 44.1 kHz, JEITA)
    • 20 Hz – 22 kHz +0/−1 dB
      • (MIC/EXT IN to LINE OUT, Fs 48 kHz, JEITA)
    • 20 Hz – 40 kHz +0/−1.5 dB
      • (MIC/EXT IN to LINE OUT, Fs 96 kHz, JEITA)
  • Total harmonic distortion:
    • ≤0.01 %
      • (MIC/EXT IN to LINE OUT, Fs 44.1/48/96 kHz, JEITA)
  • S/N ratio:
    • ≥94 dB
      • (MIC/EXT IN to LINE OUT, Fs 44.1/48/96 kHz, JEITA)
  • Note: JEITA indicates compliance with JEITA CP-2150

Approximate battery operation time (continuous operation)

  • Alkaline batteries (Evolta)
    • WAV, 96 kHz, 24 bit:  15:30 (recording with built-in mics)
    • WAV, 44,1 kHz, 16 bit:  17:30 (recording with built-in mics)
    • MP3, 44,1 kHz, 128 kbit/s:  16:30 (recording with built-in mics)
    • MP3, 48 kHz, 320 kbit/s:  11:00 (recording with built-in mics)
    • WAV, 96 kHz, 24 bit:  14:00 (playback using headphones or built-in speaker)
    • WAV, 44,1 kHz, 16 bit:  16:30 (playback using headphones or built-in speaker)
    • MP3, 44,1 kHz, 128 kbit/s:  16:30 (playback using headphones or built-in speaker)
    • MP3, 48 kHz, 320 kbit/s:  15:30 (playback using headphones or built-in speaker)
  • NiMH rechargeable batteries (Eneloop):
    • WAV, 96 kHz, 24 bit:  12:30 (recording with built-in mics)
    • WAV, 44,1 kHz, 16 bit:  14:30 (recording with built-in mics)
    • MP3, 44,1 kHz, 128 kbit/s:  13:00 (recording with built-in mics)
    • MP3, 48 kHz, 320 kbit/s:  10:00 (recording with built-in mics)
    • WAV, 96 kHz, 24 bit:  13:00 (playback using headphones)
    • 12:00 (playback using built-in speaker)
    • WAV, 44,1 kHz, 16 bit:  14:00 (playback using headphones)
    • 15:00 (playback using built-in speaker)
    • MP3, 44,1 kHz, 128 kbit/s:  13:30 (playback using headphones)
    • 13:00 (playback using built-in speaker)
    • MP3, 48 kHz, 320 kbit/s:  13:30 (playback using headphones)
    • 13:00 (playback using built-in speaker)

Power supply and other specifications

  • Power requirements:
    • 2 AA batteries (alkaline or NiMH)
    • USB bus power from a computer
    • AC adapter (Tascam PS-P520E, sold separately)
  • Power consumption:  1.7 W (maximum)
  • Dimensions (W × H × D):  61 mm × 141 mm × 26 mm
  • Weight:
    • 116 g (without batteries)
    • 165 g (with batteries)
  • Permissible operating temperature range:  0–40 °C
